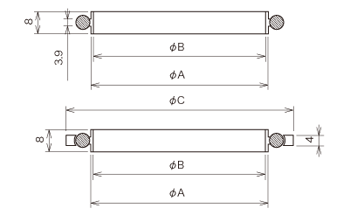

| Product code(型号） | φA | φB | φC |
|---|---|---|---|
| NW 10ｰCRｰ□□□ |
12
|
10
|
30
|
| NW 16ｰCRｰ□□□ |
17
|
16
|
30
|
| NW 25ｰCRｰ□□□ |
26
|
25
|
41.5
|
| NW 40ｰCRｰ□□□ |
41
|
40
|
56
|
| NW 50ｰCRｰ□□□ |
52
|
50
|
75
|
| NW 63ｰCRｰ□□□ |
70
|
68
|
89
|
| NW 80ｰCRｰ□□□ |
82.4
|
80
|
110
|
| NW100ｰCRｰ□□□ |
101.8
|
99
|
130
|
| NW125ｰCRｰ□□□ |
127
|
125
|
161
|
| NW160ｰCRｰ□□□ |
153
|
151
|
180
|
| NW200ｰCRｰ□□□ |
213
|
211
|
240
|
| NW250ｰCRｰ□□□ |
261
|
256
|
290
|
特殊尺寸请至电。
品质一流，价格合理，货期及时。
Please fill in individual materials of Inner ring, O−ring and Outer ring inside □with the code.
Availabe for ISO standard.Extra sizes are available to order.

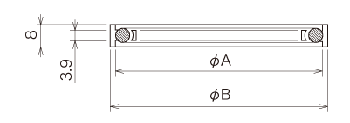

| Product code(型号） | φA | φB |
|---|---|---|
| NW10/16ｰOZｰ□□□ |
30.3
|
32
|
| NW25ｰOZｰ□□□ |
40.1
|
41.9
|
| NW40ｰOZｰ□□□ |
55.3
|
56.7
|
| NW50ｰOZｰ□□□ |
75.2
|
76.7
|
Please fill in individual materials of Inner ring, O−ring and Outer ring inside □with the code.
Extra sizes are available to order.

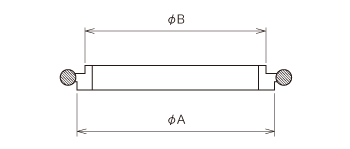

| Product code(型号） | φA | φB |
|---|---|---|
| NW10/16ｰCRR |
17
|
12
|
