Nominal dia(Bore) |
Product code (型号) |

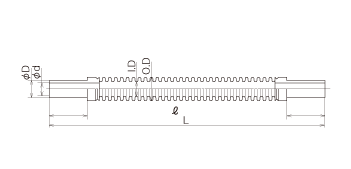

I.D | O.D | φD | φd | L | ℓ | Bend Radius 弯曲半径 |
---|---|---|---|---|---|---|---|---|
1/4"
|
PF- 8PS-20 |
5.5
|
8.5
|
6.35
|
4.5
|
200
|
20
|
30
|
PF- 8PS-30 |
300
|
|||||||
PF- 8PS-40 |
400
|
|||||||
PF- 8PS-50 |
500
|
|||||||
PF- 8PS-60 |
600
|
|||||||
PF- 8PS-80 |
800
|
|||||||
PF- 8PS-100 |
1000
|
|||||||
3/8"
|
PF-10PS-20 |
10.0
|
13.5
|
9.52
|
7.4
|
200
|
25
|
45
|
PF-10PS-30 |
300
|
|||||||
PF-10PS-40 |
400
|
|||||||
PF-10PS-50 |
500
|
|||||||
PF-10PS-60 |
600
|
|||||||
PF-10PS-80 |
800
|
|||||||
PF-10PS-100 |
1000
|
|||||||
1/2"
|
PF-15PS-20 |
12.0
|
16.0
|
12.7
|
10.3
|
200
|
30
|
45
|
PF-15PS-30 |
300
|
|||||||
PF-15PS-40 |
400
|
|||||||
PF-15PS-50 |
500
|
|||||||
PF-15PS-60 |
600
|
|||||||
PF-15PS-80 |
800
|
|||||||
PF-15PS-100 |
1000
|
