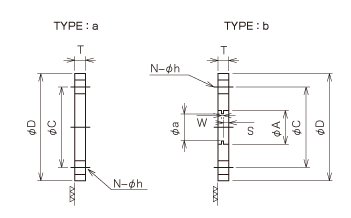

| Specifications 寸法 | Bolt holes 螺栓 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product code(型号） | Type 形状 |
Outer dia 外径尺寸 |
A | φD | T | S | φa | w | φC | N | h |
| VF 10-10A |
b
|
17.3
|
17.5
|
70
|
8
|
4
|
15
|
1.5
|
50
|
4
|
10
|
| VF 10-00 |
a
|
17.3
|
-
|
70
|
8
|
-
|
-
|
-
|
50
|
4
|
10
|
| VF 20-20A |
b
|
27.2
|
28.0
|
80
|
8
|
4
|
25
|
1.5
|
60
|
4
|
10
|
| VF 20-00 |
a
|
27.2
|
-
|
80
|
8
|
-
|
-
|
-
|
60
|
4
|
10
|
| VF 25-25A |
b
|
34.0
|
35.0
|
90
|
8
|
4
|
32
|
1.5
|
70
|
4
|
10
|
| VF 25-00 |
a
|
34.0
|
-
|
90
|
8
|
-
|
-
|
-
|
70
|
4
|
10
|
| VF 40-40A |
b
|
48.6
|
49.5
|
105
|
10
|
5
|
46
|
1.5
|
85
|
4
|
10
|
| VF 40-00 |
a
|
48.6
|
-
|
105
|
10
|
-
|
-
|
-
|
85
|
4
|
10
|
| VF 50- 50A |
b
|
60.5
|
61.0
|
120
|
10
|
5
|
57
|
2.0
|
100
|
4
|
10
|
| VF 50-00 |
a
|
60.5
|
-
|
120
|
10
|
-
|
-
|
-
|
100
|
4
|
10
|
| VF 65-65A |
b
|
76.3
|
77.0
|
145
|
10
|
5
|
73
|
2.0
|
120
|
4
|
12
|
| VF 65-00 |
a
|
76.3
|
-
|
145
|
10
|
-
|
-
|
-
|
120
|
4
|
12
|
| VF 80-80A |
b
|
89.1
|
90.0
|
160
|
12
|
6
|
86
|
2.0
|
135
|
4
|
12
|
| VF 80-00 |
a
|
89.1
|
-
|
160
|
12
|
-
|
-
|
-
|
135
|
4
|
12
|
| VF100-100A |
b
|
114.3
|
115.0
|
185
|
12
|
6
|
111
|
2.0
|
160
|
8
|
12
|
| VF100-00 |
a
|
114.3
|
-
|
185
|
12
|
-
|
-
|
-
|
160
|
8
|
12
|
| VF125-125A |
b
|
139.8
|
141.0
|
210
|
12
|
6
|
136
|
2.0
|
185
|
8
|
12
|
| VF125-00 |
a
|
139.8
|
-
|
210
|
12
|
-
|
-
|
-
|
185
|
8
|
12
|
| VF150-150A |
b
|
165.2
|
166.0
|
235
|
12
|
6
|
161
|
2.0
|
210
|
8
|
12
|
| VF150-00 |
a
|
165.2
|
-
|
235
|
12
|
-
|
-
|
-
|
210
|
8
|
12
|
| VF200-200A |
b
|
216.3
|
218.0
|
300
|
16
|
8
|
212
|
3.0
|
270
|
8
|
15
|
| VF200-00 |
a
|
216.3
|
-
|
300
|
16
|
-
|
-
|
-
|
270
|
8
|
15
|
| VF250-250A |
b
|
267.4
|
269.0
|
350
|
16
|
8
|
263
|
3.0
|
320
|
12
|
15
|
| VF250-00 |
a
|
267.4
|
-
|
350
|
16
|
-
|
-
|
-
|
320
|
12
|
15
|
| VF300-300A |
b
|
318.5
|
320.0
|
400
|
16
|
8
|
314
|
3.0
|
370
|
12
|
15
|
| VF300-00 |
a
|
318.5
|
-
|
400
|
16
|
-
|
-
|
-
|
370
|
12
|
15
|
其他标准尺寸,请来电
超高的焊接工艺，
品质一流，价格合理，货期及时。
由于我们必须努力支持改进,本公司保留以上数据更改的权利,
不同材质请说明
Extra sizes are available to order.
