| NO | Product code (型号） |

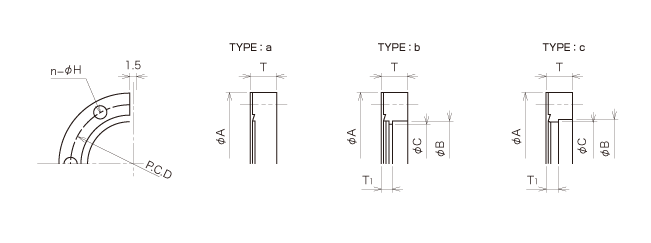

Type 形状 |
φA | φB | φC | T | T1 | φＨ | n | P.C.D | Pipe dia. (outer dia.) 外径 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1
|
ICF70-H |
a
|
70
|
|
-
|
12.7
|
-
|
6.8
|
6
|
58.7
|
-
|
|
2
|
ICF70- 27.2H |
b
|
70
|
27.5
|
25.2
|
12.7
|
5.3
|
6.8
|
6
|
58.7
|
27.2
|
|
3
|
ICF70- 34H |
b
|
70
|
34.3
|
32.0
|
12.7
|
5.3
|
6.8
|
6
|
58.7
|
34.0
|
|
4
|
ICF70- 38H |
b
|
70
|
38.5
|
35.5
|
12.7
|
5.3
|
6.8
|
6
|
58.7
|
38.0
|
|
5
|
ICF70- 41H |
b
|
70
|
41.5
|
38.5
|
12.7
|
5.3
|
6.8
|
6
|
58.7
|
41.0
|
|
6
|
ICF70- 42.7H |
c
|
70
|
43.1
|
41.0
|
12.7
|
5.3
|
6.8
|
6
|
58.7
|
42.7
|
|
7
|
ICF70- 38T |
b
|
70
|
38.5
|
35.5
|
12.7
|
5.3
|
M6
|
6
|
58.7
|
38.0
|
|
8
|
ICF70- 41T |
b
|
70
|
41.5
|
38.5
|
12.7
|
5.3
|
M6
|
6
|
58.7
|
41.0
|
|
9
|
ICF70-T |
a
|
70
|
|
-
|
12.7
|
-
|
M6
|
6
|
58.7
|
-
|
|
10
|
ICF114-H |
a
|
114
|
|
-
|
17.5
|
-
|
8.5
|
8
|
92.1
|
-
|
|
11
|
ICF114- 60.5H |
b
|
114
|
60.8
|
58.5
|
17.5
|
9.5
|
8.5
|
8
|
92.1
|
60.5
|
|
12
|
ICF114- 63.5H |
b
|
114
|
64.0
|
61.0
|
17.5
|
9.5
|
8.5
|
8
|
92.1
|
63.5
|
|
13
|
ICF114- 63.5T |
b
|
114
|
64.0
|
61.0
|
17.5
|
9.5
|
M8
|
8
|
92.1
|
63.5
|
|
14
|
ICF114-T |
a
|
114
|
|
-
|
17.5
|
-
|
M8
|
8
|
92.1
|
-
|
|
15
|
ICF152-H |
a
|
152
|
|
-
|
20.0
|
-
|
8.5
|
16
|
130.2
|
-
|
|
16
|
ICF152-101.6H |
b
|
152
|
102.0
|
97.0
|
20.0
|
11.0
|
8.5
|
16
|
130.2
|
101.6
|
|
17
|
ICF152-101.6T |
b
|
152
|
102.0
|
97.0
|
20.0
|
11.0
|
M8
|
16
|
130.2
|
101.6
|
|
18
|
ICF152-T |
a
|
152
|
|
-
|
20.0
|
-
|
M8
|
16
|
130.2
|
-
|
|
19
|
ICF203-H |
a
|
203
|
|
-
|
22.0
|
-
|
8.5
|
20
|
181.0
|
-
|
|
20
|
ICF203-153H |
b
|
203
|
153.5
|
148.5
|
22.0
|
12.5
|
8.5
|
20
|
181.0
|
153.0
|
|
21
|
ICF203-153T |
b
|
203
|
153.5
|
148.5
|
22.0
|
12.5
|
M8
|
20
|
181.0
|
153.0
|
|
22
|
ICF203-T |
a
|
203
|
|
-
|
22.0
|
-
|
M8
|
20
|
181.0
|
-
|
|
23
|
ICF253-H |
a
|
253
|
|
-
|
25.0
|
-
|
8.5
|
24
|
231.8
|
-
|
|
24
|
ICF253-203H |
b
|
253
|
203.5
|
198.5
|
25.0
|
12.5
|
8.5
|
24
|
231.8
|
203.0
|
|
25
|
ICF253-203T |
b
|
253
|
203.5
|
198.5
|
25.0
|
12.5
|
M8
|
24
|
231.8
|
203.0
|
|
26
|
ICF253-T |
a
|
253
|
|
-
|
25.0
|
-
|
M8
|
24
|
231.8
|
-
|
特殊具体尺寸请至电。
超高的焊接工艺，
品质一流，价格合理，货期及时。
不同材质请说明
SUS304L is standard for the Flange products.
Please specify“−6L”the end of the code, if SUS316L required.
Please specify“−R”the end of the code, if ROTATABLE FLANGE required.
For boltholes, please specify“H”for THRU or “T”for TAPPED.
Extra sizes are available to order.
