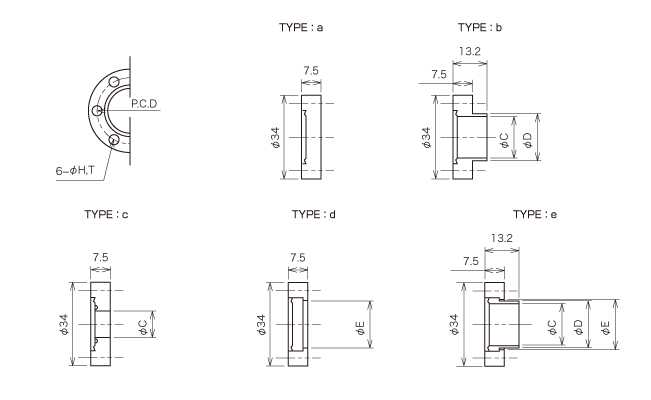

FIXED FLANGE 固定式 | ||||||||
---|---|---|---|---|---|---|---|---|
NO | Product code(型号) | Type 形状 |
φD | φC | φE | H | P.C.D | Pipe dia. (outer dia.) 外径 |
1
|
ICF34-H |
a
|
待定
|
-
|
-
|
4.5
|
27
|
-
|
2
|
ICF34- 6.4H |
c
|
-
|
6.4
|
-
|
4.5
|
27
|
6.35
|
3
|
ICF34- 9.6H |
c
|
-
|
9.6
|
-
|
4.5
|
27
|
9.53
|
4
|
ICF34-12.8H |
c
|
-
|
12.8
|
-
|
4.5
|
27
|
12.70
|
5
|
ICF34-17.3H |
b
|
17.3
|
14.9
|
-
|
4.5
|
27
|
17.30
|
6
|
ICF34-19.1H |
b
|
19.1
|
16.0
|
-
|
4.5
|
27
|
19.10
|
7
|
ICF34-19.1T |
b
|
19.1
|
16.0
|
-
|
M4
|
27
|
19.10
|
8
|
ICF34-T |
a
|
待定
|
-
|
-
|
M4
|
27
|
-
|
ROTATABLE FLANGE 回転 | ||||||||
NO | Product code(型号) | Type 形状 | φD | φC | φE | H | P.C.D | Pipe dia. (outer dia.) 外径 |
9
|
ICF34-RH |
d
|
待定
|
-
|
-
|
4.5
|
27
|
-
|
10
|
ICF34-17.3RH |
e
|
17.3
|
14.9
|
19.3
|
4.5
|
27
|
17.30
|
11
|
ICF34-19.1RH |
e
|
19.1
|
16.0
|
19.3
|
4.5
|
27
|
19.10
|
特殊尺寸和工艺,材料要求请来电咨询
超高的焊接工艺,
品质一流,价格合理,货期及时。
SUS304L is standard for the Flange products.
Please specify“−6L”the end of the code, if SUS316L required.
Please specify“−R”the end of the code, if ROTATABLE FLANGE required.
For boltholes, please specify“H”for THRU or “T”for TAPPED.
Extra sizes are available to order.
