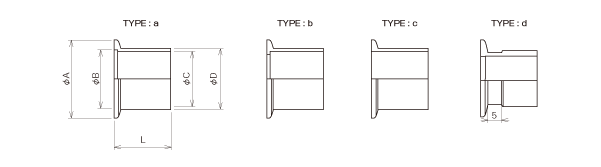

| Product code(型号） | Type | φA | φB | φC | φD | L |
|---|---|---|---|---|---|---|
| NW 10-50L |
a
|
30
|
12.2
|
10.0
|
13.8
|
50
|
| NW 16-50L |
d
|
30
|
17.2
|
17.5
|
21.7
|
50
|
| NW 25-50L |
a
|
40
|
26.2
|
23.0
|
27.2
|
50
|
| NW 25-50L-5S |
a
|
40
|
26.2
|
24.0
|
27.2
|
50
|
| NW 40-50L |
a
|
55
|
41.2
|
37.1
|
42.7
|
50
|
| NW 40-50L-5S |
a
|
55
|
41.2
|
39.0
|
42.7
|
50
|
| NW 50-50L |
b
|
75
|
52.2
|
54.9
|
60.5
|
50
|
| NW 50-50L-5S |
b
|
75
|
52.2
|
57.2
|
60.5
|
50
|
| NW 63-50L |
c
|
87
|
70.2
|
70.2
|
76.3
|
50
|
| NW 10-70L |
a
|
30
|
12.2
|
10.0
|
13.8
|
70
|
| NW 16-70L |
d
|
30
|
17.2
|
17.5
|
21.7
|
70
|
| NW 25-70L |
a
|
40
|
26.2
|
23.0
|
27.2
|
70
|
| NW 40-70L |
a
|
55
|
41.2
|
37.1
|
42.7
|
70
|
特殊尺寸请至电。SUS304 is standard for the Flange products.
Please specify“−6L”the end of the code, if SUS316L required.
Please specify“−AL”the end of the code, if Aluminum required.
Extra sizes are available to order.
