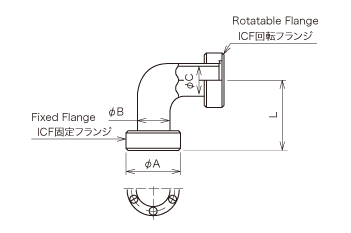

| Product code(型号） | φA | φB | φC | L |
|---|---|---|---|---|
| ICF034-E |
34
|
19.0
|
16.0
|
51.3
|
| ICF070-E |
70
|
38.0
|
35.0
|
54.2
|
| ICF114-E |
114
|
63.5
|
60.2
|
93.0
|
| ICF152-E |
152
|
101.6
|
95.6
|
144.0
|
| ICF203-E |
203
|
153.0
|
147.0
|
167.0
|
| ICF253-E |
253
|
203.0
|
197.0
|
203.0
|
特殊尺寸和工艺要求请咨询
Extra sizes are available to order.

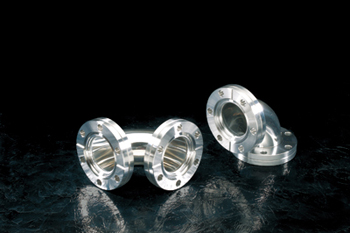

Right angle Elbows are available.
