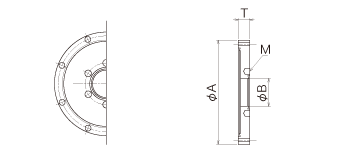

Product code(型号) | φA | φB | T | M(Depth) | 螺栓 |
---|---|---|---|---|---|
ICF 70-34 |
70
|
17
|
12.7
|
6-M4(深 6)
|
M4×12ℓ
|
ICF114-34 |
114
|
17
|
17.5
|
6-M4(深 8)
|
M4×15ℓ
|
ICF114-70 |
114
|
38
|
17.5
|
6-M6(深 8)
|
M6×22ℓ
|
ICF152-34 |
152
|
17
|
20.0
|
6-M4(深 8)
|
M4×15ℓ
|
ICF152-70 |
152
|
38
|
20.0
|
6-M6(深 10)
|
M6×22ℓ
|
ICF152-114 |
152
|
65
|
20.0
|
8-M8(深 10)
|
M8×30ℓ
|
ICF203-34 |
203
|
17
|
22.0
|
6-M4(深 9)
|
M4×15ℓ
|
ICF203-70 |
203
|
38
|
22.0
|
6-M6(深 10)
|
M6×22ℓ
|
ICF203-114 |
203
|
65
|
22.0
|
8-M8(深 10)
|
M8×30ℓ
|
ICF203-152 |
203
|
103
|
22.0
|
16-M8(深 10)
|
M8×30ℓ
|
ICF253-34 |
253
|
17
|
25.0
|
6-M4(深 9)
|
M4×15ℓ
|
ICF253-70 |
253
|
38
|
25.0
|
6-M6(深 10)
|
M6×22ℓ
|
ICF253-114 |
253
|
65
|
25.0
|
8-M8(深 10)
|
M8×35ℓ
|
ICF253-152 |
253
|
103
|
25.0
|
16-M8(深 10)
|
M8×35ℓ
|
ICF253-203 |
253
|
154
|
25.0
|
20-M8(深 10)
|
M8×35ℓ
|
特殊尺寸和工艺,材料要求请来电咨询
超高的焊接工艺,
品质一流,价格合理,货期及时。

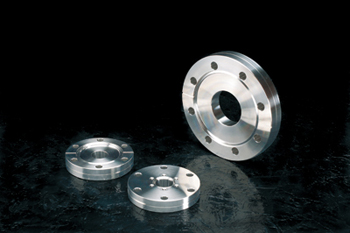

SUS304L is standard for the Flange products.
Please specify“−6L”the end of the code, if SUS316L required.
Please specify“−R”the end of the code, if ROTATABLE FLANGE required.
For boltholes, please specify“H”for thru or “T”for tapped.
Extra sizes are available to order.
